Solid State Relay (SSR) is a contactless switching device with relay characteristics that uses semiconductor devices instead of traditional electrical contacts as switching devices. It usually consists of three parts: input circuit, isolation (coupling), and output circuit.

The main features of dual channel solid-state relays include:

1. Adopting internationally advanced design circuits and technologies, with built-in transient TVS protection and high I2T technology, it can effectively protect against overvoltage and overcurrent.

2. Zero crossing communication can reduce interference and pollution generated during the switching process.

3. The input and output circuits are isolated through photoelectric coupling and other methods, enhancing their anti-interference ability and safety.

4. The output uses components such as bidirectional thyristors and IGBT high-power field-effect transistors, which have advantages such as fast switching speed.

5. After strict testing by the original factory, the electrical lifespan is long.

6. Most products have UL, CUL, CE and other certifications, which comply with relevant quality and environmental standards.

Its input voltage types are diverse, such as DC or AC, etc; There are also different specifications for output voltage and current to meet various load requirements. Output circuits can be divided into forms such as DC output circuits, AC output circuits, and AC-DC output circuits.

Dual channel solid-state relays are widely used in various industrial applications, suitable for resistive, inductive, and capacitive loads. For example, in the rubber and plastic machinery industry, wire and cable machinery industry, plastic machinery industry, heat treatment equipment, electric furnace factory and other fields, it can be used to control the on/off of equipment such as motors and electric heating.

When selecting dual solid-state relays in practice, factors such as load type (resistive, inductive, or capacitive), load current size, input control voltage, and working environment conditions need to be considered to ensure that the relay can operate normally and reliably. At the same time, attention should be paid to installing and using the product correctly according to the product manual, avoiding exceeding its rated parameter range to ensure its performance and lifespan.

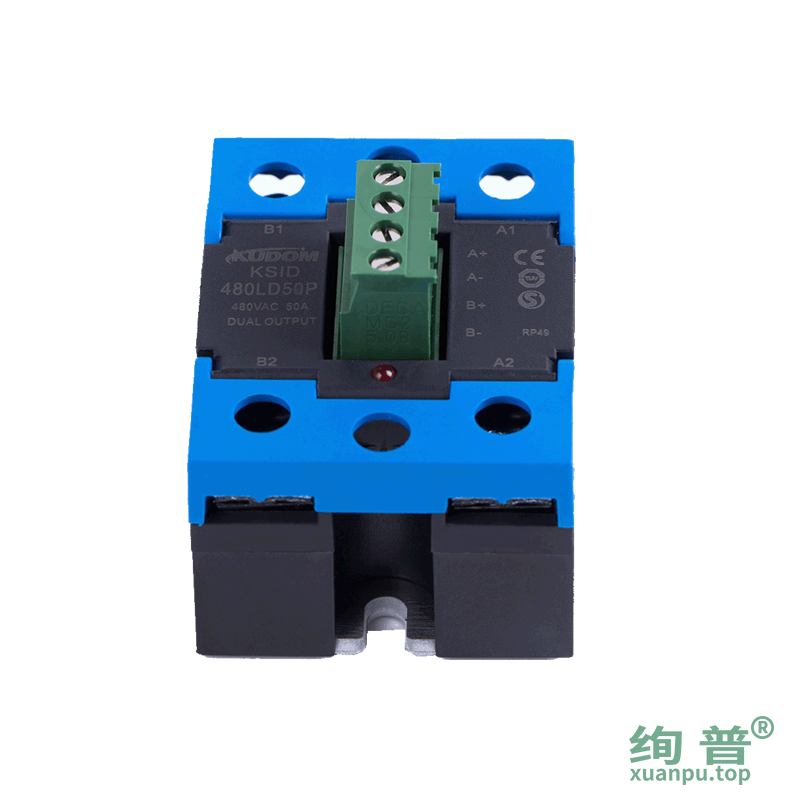

The following is an example of the parameters of a certain dual channel solid-state relay (KSID UK KUDOM KSID series) for your reference:

Input voltage: 4-15 or 15-32VDC or 85-280VAC;

Output voltage: 12-440VAC;

Output current: 25A/40A/50A;

Zero crossing or random conduction switch;

Product specifications: 58.4X45.7X22.0mm;

Applicable loads: resistive, inductive, capacitive loads.

The specific parameters of dual solid-state relays from different manufacturers and models may vary, and the specific selection needs to be evaluated and chosen according to actual needs.
