DIN AC Output SSR

Location： Home > Product > CRYDOM > DIN AC Output SSR

DRH3P60D20

控制电压：

4-32VDC

负载电压：

三相40-600VAC

负载电流：

20A

触发方式：

过零型

功能：

LED 过压保护过温保护

耐压：

3750Vrms

工作温度：

-10~70℃

认证：

UL CE RoHS EMC IEC

供应星级：

★

Hotline：+86-21-34291916
Contact Us Now

Product Details

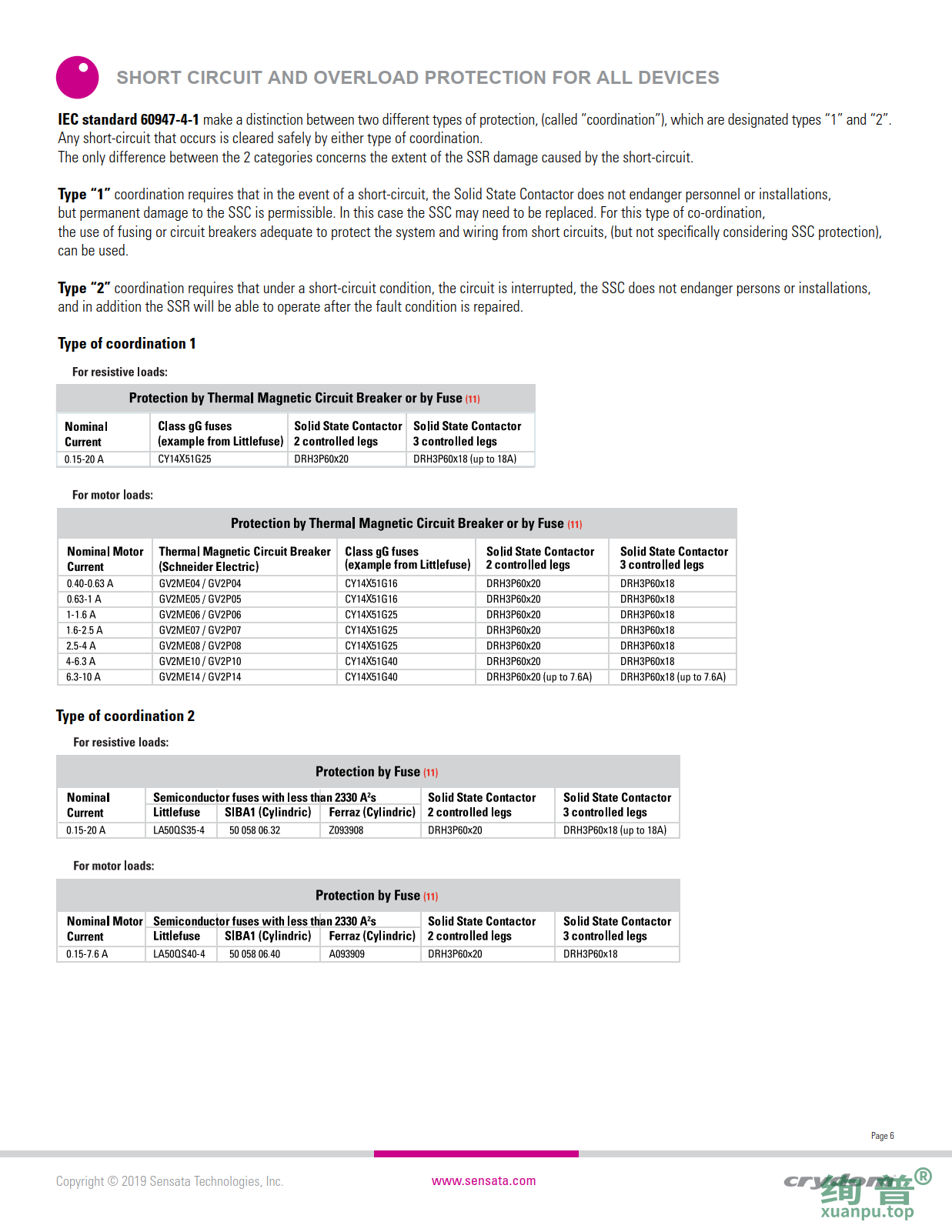

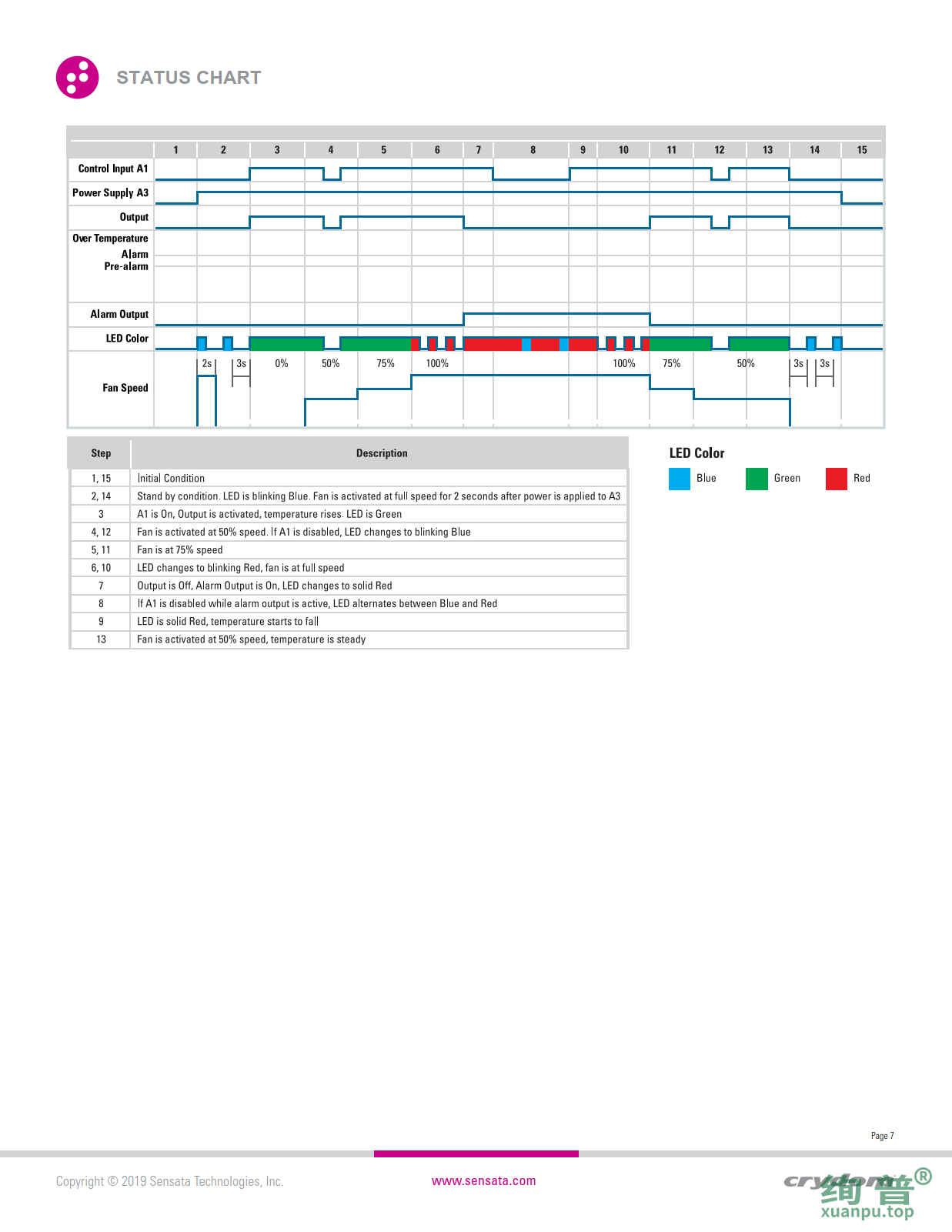

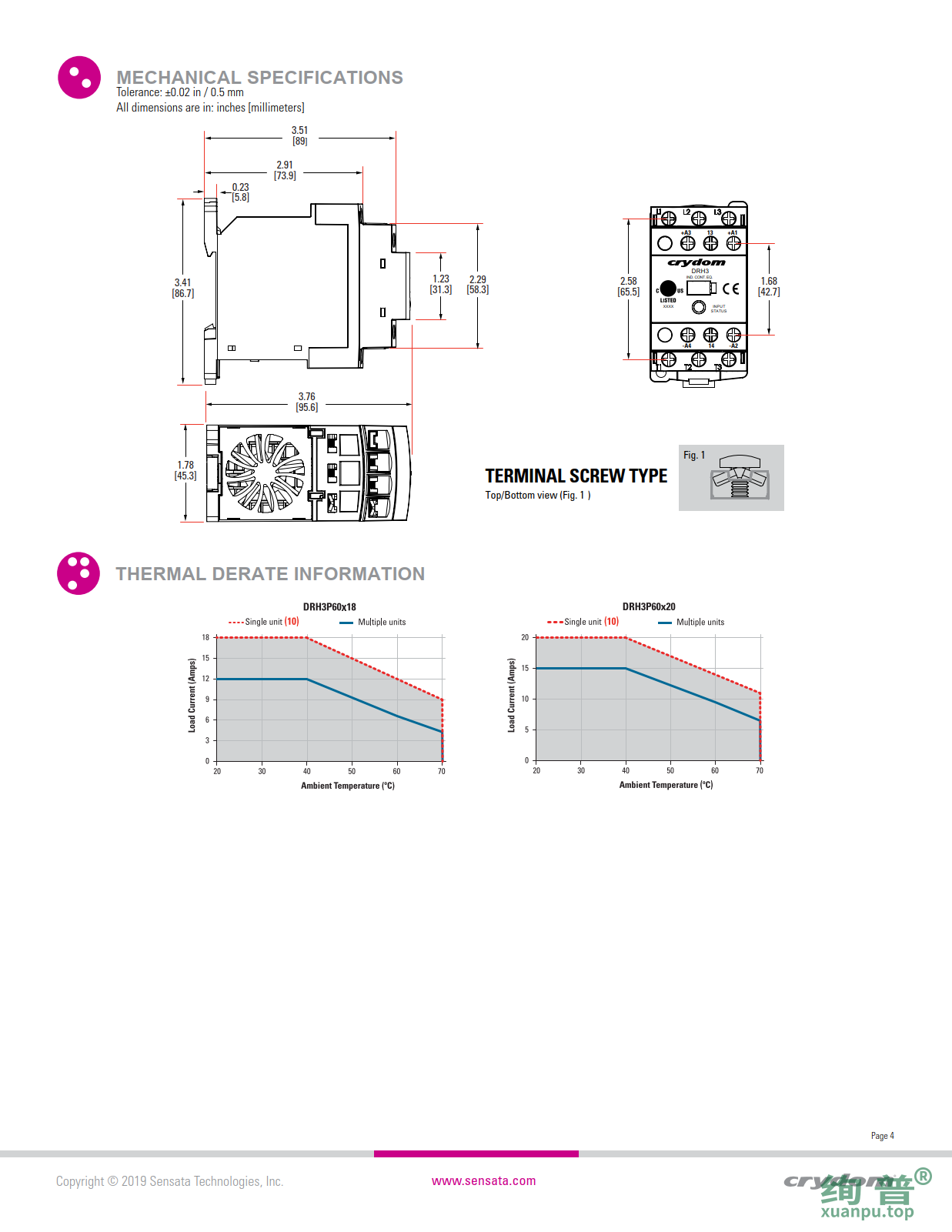

DRH3P60D20(图1)

DRH3P60D20(图2)

DRH3P60D20(图3)

DRH3P60D20(图4)

DRH3P60D20(图5)

DRH3P60D20(图6)

DRH3P60D20(图7)

DRH3P60D20(图8)

DRH3P60D20(图9)
